Mechanical
¨ Low adjustable starting torque
¨ Reduced cost of drive components
Conveyor belts
¨ Falling over, banging or slipping of products, parcels etc. is eliminated
Electrical
¨ Reduced starting current (with SM, SM2X, SM2 only)
Applications
¨ Conveyor belts

¨ Packing equipment

¨ Long-travel drives for cranes

¨ Compressors

¨ Heat pumps

¨ Vibration transporters

¨ Machines with gearbox, belt or chain drives

¨ Special version for pole-change motors

Features

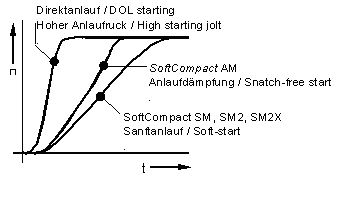

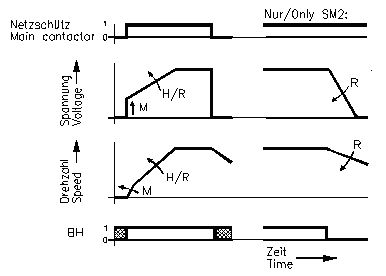

Switch-on torque and run-up voltage ramp separately adjustable.

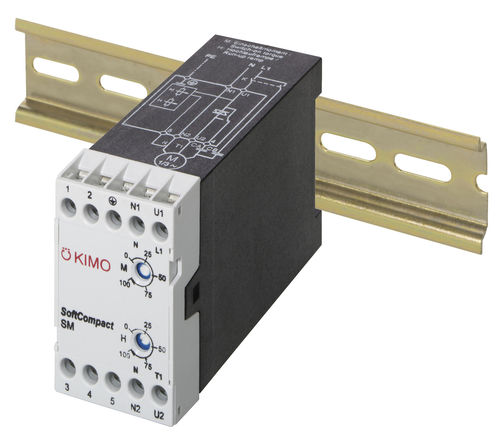

¨ Module housing for mounting on 35 mm DIN rails. Very compact version with the width of a standard contactor (45 mm or 90 mm with SM2X)

¨ Terminals and potentiometers are well protected against accidental contact

¨ Easily retrofitted

¨ Can be used as a combined soft-start and injection brake using the electronic brake modules LEKTROMIK B1

Parameter Name	Parameter Value
Type	motor
Technology	electronic
